Description
The ultimate experience!
The QUICKIE Q700 M Series power wheelchair combines function and luxury for a unique driving experience. Make your day-to-day a thrill with the Q700 M Series’ robust suspension, Biometric Repositioning, reliable 4-pole motors, and PG Drives electronics. Choose the HD option to increase user weight capacity to 450 lbs.
Style: It’s a personal thing.
Personalize your QUICKIE Q700 M with a selection of seven striking accent colors for an expressive, individual look. Looking for a style that’s a little more unique? Our Built-4-Me modifications team can provide a power wheelchair to reflect your individuality.
Pick from our wide array of striking shroud colors to make your QUICKIE truly yours. From Candy Red to a sleek black accent, explore our collection to find the look that suits you!
- Candy Blue
- Candy Purple
- Candy Red
- Green Apple
- Pearl Pink
- Pearl White
- Silver
Mid-Wheel Drive Performance, Evolved
The Q700 M mid-wheel drive base sets the bar for power wheelchair technology inside and out. Travel further with it superior drive performance and feel secure over challenging terrain with SpiderTrac 2.0 suspension and its independent movement of all six wheels. It’s a driving experience like never before.
Keeping you safely on-track
The optional SureTrac® System automatically detects and corrects the smallest deviation from your input direction. By providing a pinpoint accurate drive, it’ll reduce the number of physical or cognitive actions required to keep your power wheelchair on-track, making for a less-demanding drive (especially if using special controls).
Superb indoor maneuverability
Turning on its own axis, enjoy intuitive driving and excellent maneuverability in tight compact spaces with its narrow 25″ base and a 23.5″ turning radius. Also, easily roll under tables and access wheelchair adaptive vehicles (WAVs) with a low seat height from just 17″.
High-performance outdoor suspension
Climb curbs of up to 3″ and enjoy a smoother, more responsive ride with the Q700 M’s robust suspension. With its independent movement of all six wheels, the front and rear wheels gives it the ability to crawl up and down steep obstacles while keeping all six wheels to the ground – even when ascending gradients of up to 9° (limitations may apply).
*Please read the owner’s manual for safe operating instructions.
Timeless design that leaves a lasting impression
Style: it’s a personal thing. That’s why you have a choice of six vibrant color inlays to suit your personality. With a matte black chassis finish and tailored upholstery, it’s a power wheelchair that provides a truly sleek and minimalist silhouette from every angle. Inspired by its design but want something extra? Our Built-4-Me modifications team can tailor your power wheelchair into a striking expression of you. Why not take it for a spin and experience style in motion?
QUICKIE Motor Technology
Our robust motor technology can’t be easily duplicated anywhere else. That’s because we’ve spent years working closely with our manufacturer to develop a longer-lasting, highly efficient motor with improved performance, drivability, and range.
Engineered for optimal driving performance
We know that more time is spent maneuvering around a home and workplace versus traveling long distances. That’s why we’ve designed our motors to give you the control you need in small spaces without sacrificing the power you want to tackle obstacles. Plus, you’ll be able to drive 10% further on the same battery capacity. Similar to a car driving on the highway versus in the city, don’t sacrifice performance in places where it’s needed the most.
Reduced thermal rollback
The larger fins found on our motors aren’t just a stylish design feature. Larger cooling fins enable heat to escape more effectively, reducing your risk of thermal rollback so you can drive 25% further and faster, even when on an incline or faced with uneven surfaces.
Equipped with 10 seconds of power boost
Overcoming obstacles like steeper inclines and even door jambs gets easier with our controller and motor combination. These two systems work together to provide you with an additional 10 seconds of boost for that extra power whenever you need it.
Designed to last
Unlike some of our competitors, QUICKIE motors feature metal gears instead of plastic. Polished for low noise and high efficiency, our all-metal gears exceed expectations in tough conditions. We go the extra step in polishing those gears because we believe that a little extra effort goes a long way in creating a better ride.
QUICKIE Motor Technology continually exceeds rigorous testing standards. With a proven 99% success rate, your ride will be unlike any other. QUICKIE 4-pole motors generate 18% more power than previous generations.
C-Me Seat Elevation
No more waiting around or driving at reduced speed when elevated. C-Me® enables you to elevate up to 12″ while traveling up to 3 mph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time!
Our power wheelchairs are designed with style for long-lasting performance. Unlike some of our competitors, our suspension doesn’t lock out when you drive with C-Me, giving you a smooth and comfortable ride from start to finish. You’ll never have to compromise dependability for accessibility again.
C-Me available on SEDEO PRO ADVANCED, PRO and LITE seating systems.
Q700 M Seating System Comparison
The QUICKIE Q700 M is available with four distinct seating systems: the highly featured SEDEO PRO ADVANCED, the versatile SEDEO PRO, the simple SEDEO LITE, and the comfortable Captain Seat.
| SEDEO PRO ADVANCED |
SEDEO PRO |
SEDEO LITE |
Captain Seat |
|
|---|---|---|---|---|
| Biometric Repositioning | ✔ | – | – | – |
| Remote Seating App | ✔ | – | – | – |
| Memory Seating | ✔ | – | – | – |
| Pressure Relief Alert Reminder (PRAR) | ✔ | – | – | – |
| Cryo fluid (available only on JAY Syncra seating) | ✔ | ✔ | – | – |
| Power Recline w/ 7″ of Shear (165°) | ✔ | – | – | – |
| Power Recline w/ 4″ of Shear (150°) | – | ✔ | – | – |
| Manual Recline Option | – | ✔ | – | ✔ |

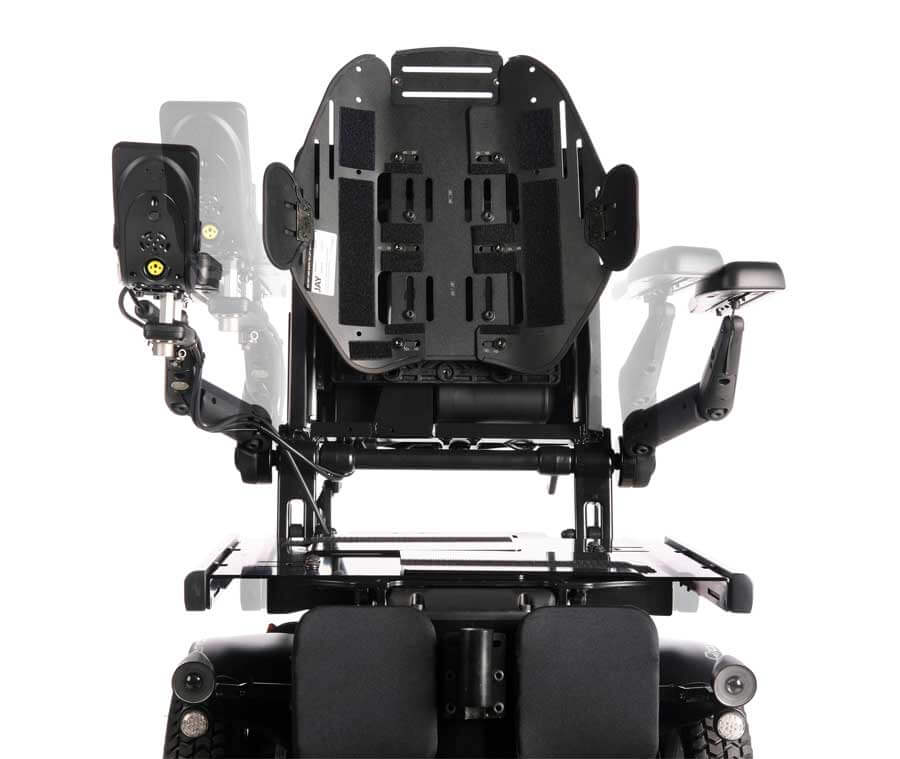

| Multi-Link Arm Supports | ✔ | – | – | – |
| Power 50° Center Gravity Tilt | ✔ | ✔ | ✔ | ✔ |
| Power Legrest | ✔ | ✔ | ✔ | ✔ |
| 12″ Elevate | ✔ | ✔ | ✔ | ✔ |
| C-Me® Seat Elevation | ✔ | ✔ | ✔ | – |
| Seat Width | 16″ – 22″ | 16″ – 26″ | 15″ – 20″ | 16″, 18″, 20″ |
| Seat Depth | 15″ – 20″ | 14″ – 22″ | 16″ – 22″ | 16″ – 22″ |
| Backrest Height | 22″ – 28″ | 22″ – 30″ | 18″ – 30″ | 25″ |
It’s the first-class seat that’s designed specifically to fit you. The SEDEO PRO ADVANCED with patented Biometric Repositioning is more effective than any other seating system when it comes to independent repositioning throughout the day.
-
-
The new centermount footrest gives a true 90° knee angle in seated position. Plus, the footplate can go all the way to the ground.
-

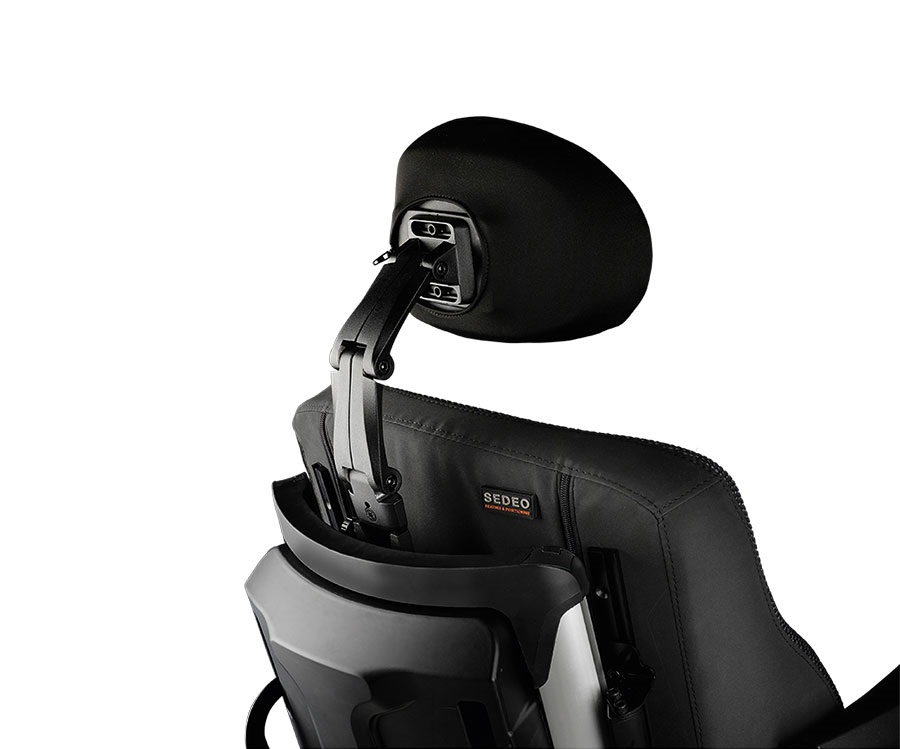

The premium headrest (1) can easily be adjusted or removed. All seat widths and depths (2) are infinitely adjustable with just one tool. Also, the seat and backrest width (3+4) can be adjusted independently of each other. Even the armrest height and angle (5) are simple to adjust, too.
-
Transitioning in and out of recline doesn’t need to be uncomfortable. The SEDEO PRO ADVANCED’s power recline is supported by 7″ of anti-shear to better maintain the positioning of the headrest, and even chin control, during recline.
-
Moving out of a reclined position often requires use of the tilt function to regain your proper seated posture. With the patented Biometric Repositioning, when you move from reclined to seated, the SEDEO PRO ADVANCED will first pass through an intermediary tilted position, using gravity to realign your pelvis in one smooth, effortless motion.
-
Your Q700 M can also provide pressure relief reminders to help remind you when it’s time to change your seated position. Using the Remote Seating app, reports are created and can be sent to your clinician to review.
-
The SEDEO PRO seating system combines a highly adjustable and configurable seating frame with an excellent choice of support options including optimized integration with JAY components. Choose from a wide range of SEDEO PRO seat cushions and backrests for mild to high clinical needs. The SEDEO PRO is very comfortable to use and enhances user independence in everyday life.
-
A variety of backrest options are available for the SEDEO PRO seating system. The 150° powered recline backrest offers 4” of anti-shear, making sure to minimize the sliding between you and the cushion.
- Fixed backrest
- User-adjustable manual semi-recline backrest
- 130° powered semi-recline backrest
- 150° powered recline backrest
-
The easy-to-operate flip-back armrest gives you unencumbered transfer space. Choose from a removable or reclining version (reclining shown right).
Also available: single-post removable armrest. All are compatible with four armpad options.
-
Adjust seat depth and width, backrest angle and height, legrest angle, lower leg length, armrest height and depth, and headrest height. These adjustment options give you total flexibility and can be done quickly and easily, creating the right seating posture for you. All with one tool allowing for easy modification in case of changing requirements.
-
The SEDEO PRO offers an excellent choice of options to create the perfect fit for the user. With four backrest types, four armrest types, five legrest types, and a wide range of seat & back cushions, headrests, and positioning options. It can be easily modified to suit individual requirements and quickly adapted to changing needs.
-
The SEDEO PRO offers a full array of footrest options. You can choose a power elevating and articulating leg rest which allows for optimal positioning and comfort. Power elevating leg rests are available as center mount or individual swing-away versions. Alternatively, you can also choose a manual elevating swing-away leg rest or traditional fixed angle style in both swing-away or center mount.
Many positioning elements are available like SEDEO headrests & WHITMYER headrests, swing-away lateral thoracic supports, thigh supports, or knee supports. All positioning elements are swing-away or easily detachable.
Syncra Seating
JAY® Syncra™ is a cohesive and attractive seating system specifically designed for optimal performance with tilt and recline. Syncra has a width- and height-adjustable back, a cushion that fits mild to complex seating needs, and positioning accessories for support and stability. Learn more in the Syncra brochure.
JAY® Syncra™ featuring CryoFluid™ is the optimal seating system for power wheelchair users who have a history of pressure injuries.
Sometimes less is more. The SEDEO LITE is an adjustable seat frame that gives you a simple, sleek look. Its minimal design alleviates weight capacity concerns when using aftermarket equipment. As one of the lightest seating systems on the market, the Q700 M equipped with SEDEO LITE seating has a starting weight of 294 lbs., making it a great solution for many hitch-mounted lifts. The traditional back canes are width-adjustable from 15″ to 20″ and easily fit JAY back rests.
-
Effortlessly make a wide range of adjustments using just one tool! To accommodate changing requirements, seat widths can adjust between 15″ and 20″ and seat depth can adjust between 16″ and 22″. The easy-to-operate, flip-back armrest gives you unencumbered transfer space. With 5″ of armrest height adjustability and a large array of adjustable options available on the SEDEO LITE, it is easy to find the right fit.
-
With transportation in mind, the lightweight seat is complemented with a fold-down or removable back to provide one of the most compact power seating systems in the market.
-
The SEDEO LITE offers a full array of legrest options. Choose from multiple centermount options such as fixed, power, or the new angle-adjustable centermount.
-
Traditional back canes give the ability to easily mount a range of JAY® backrests or a height-adjustable sling back with adjustable straps. Choose from a selection of Whitmyer® or SEDEO® headrests – each are compatible whether you opt for a traditional back mount or the integrated mount with the sling. The side seat rail allows for additional mounting solutions such as transfer bars, thigh supports, and knee supports with infinite adjustment.

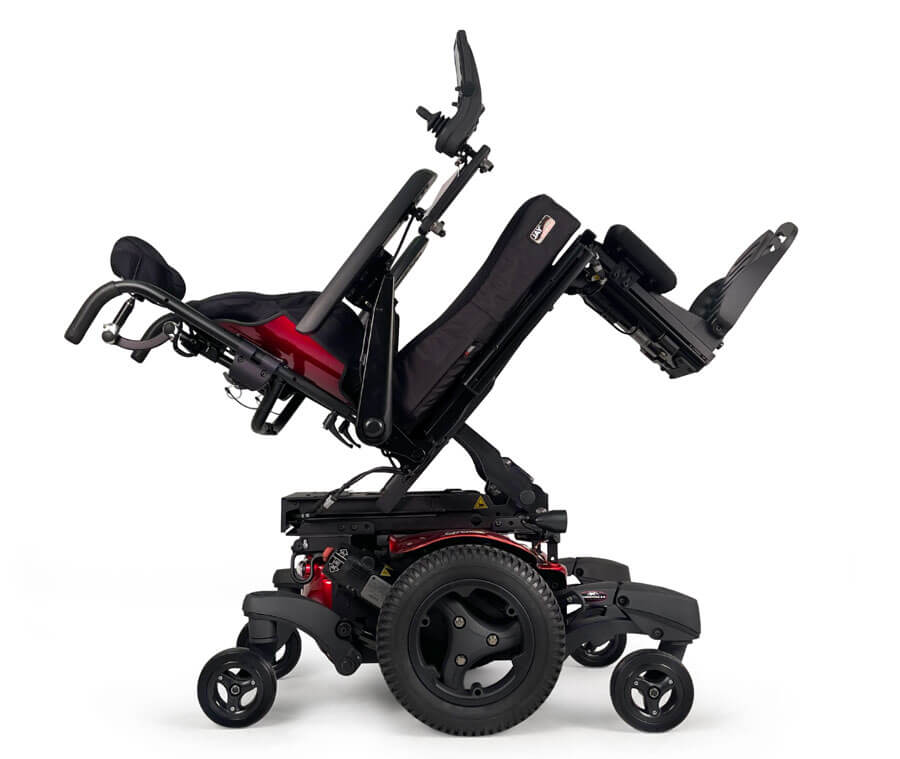

The SEDEO LITE offers 50° of tilt with automatic center of gravity (COG) adjustment for improved stability. In addition to the low seat-to-floor height, enjoy 12 inches of elevate, rated up to 350 lbs.!

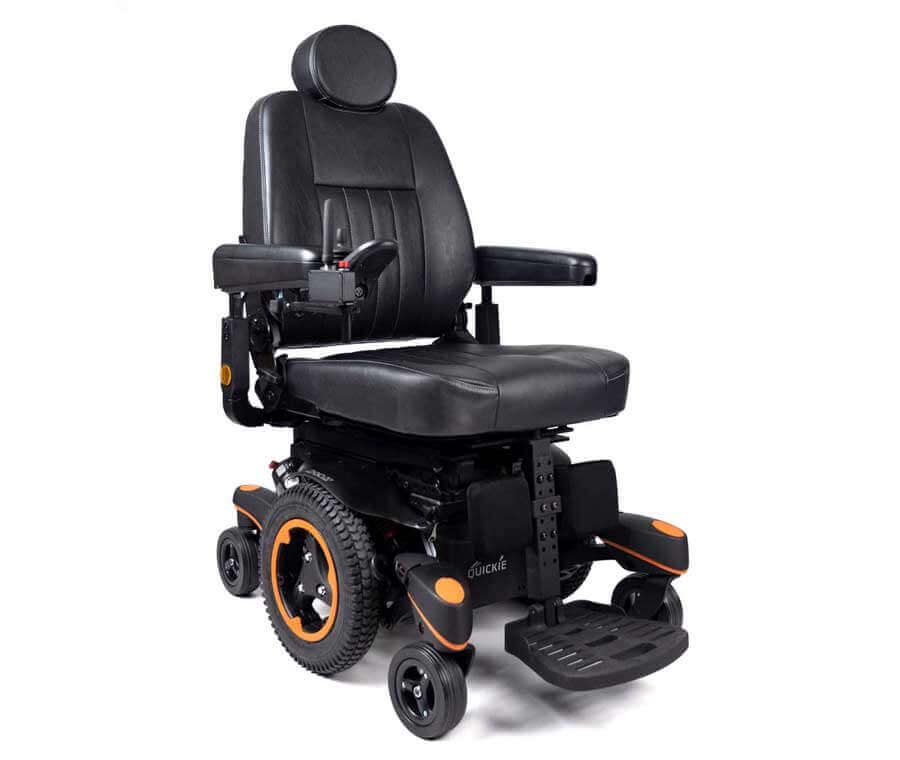

Captain Seat – Comfortable Seating
The Captain’s Seat provides a relaxed sitting position and features a semi-recline, fold-down backrest, adjustable seat size, and convertible seat pan that allows you to use your preferred cushion. Available with a 50° tilt and power centermount legrest.
Control at Your Fingertips
Control your environment with the Q700 M Series and its advanced controller technology. Available with the superior R-Net advanced joystick as standard, the large, easy-to-read display and simple-to-control paddle switches allow for intuitive operation.
CONNECT
Seamlessly take control of your environment using the integrated infrared functionality. Use your joystick like a remote control for your TV and select home entertainment systems.
BLUETOOTH®
Control your phone, computer, tablet, and any other Bluetooth® devices, compatible with Android™ and Apple® iOS devices from your Q700 M power wheelchair with this useful optional extra. Connect and control up to four devices.
QUICKIE PATENTED ASSIGNABLE BUTTONS
Change the function of any button on your joystick to any command you desire, thanks to QUICKIE’s patented assignable buttons. You can also assign a second (long press) function to buttons for quicker, simpler, and smoother access to commonly used functions without having to use your joystick.

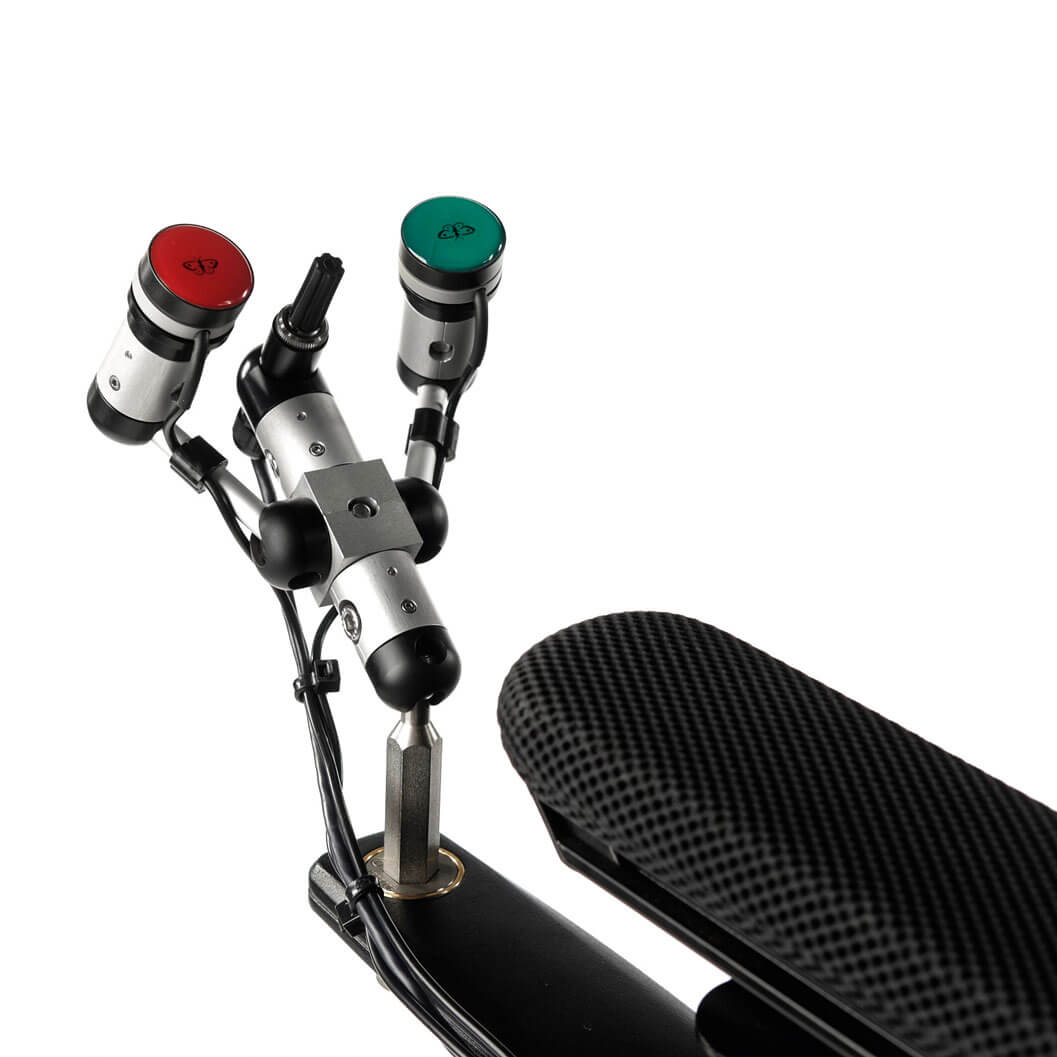

Link-It Mounting System
Need to use additional switches or specialty controls? Easily connect them using the universal Link-It® Mounting System. Using a combination of available modules and rods, create endless combinations. It’s easy to position and ensures your wheelchair maintains its sleek look. Whether it’s an extra controller on the armrest, a push button on the backrest, or a switch on the headrest, just link-it.
Seat Width:
- SEDEO PRO ADVANCED: 16″ to 22″
- SEDEO PRO: 16″ to 26″
- SEDEO LITE: 15″ to 20″
- Captain Seat: 16″, 18″, 20″
Seat Depth:
- SEDEO PRO ADVANCED: 15″ to 20″
- SEDEO PRO: 14″ to 22″
- SEDEO LITE: 16″ to 22″
- Captain Seat: 16″ to 22″
Note: Back cushion can cause 2″ loss of effective depth.
Back Height:
- SEDEO PRO ADVANCED: 21″ to 28″
- SEDEO PRO: 21″ to 30″
- SEDEO LITE: 18″ to 30″
- Captain Seat: 25″
Max. Speed:
- 6 mph (standard)
- 5 mph (optional)
- 8 mph (optional)
Battery Size:
- Group 34
- Group 24
Seat Memory Functions:
- Seated
- Pressure Relief
- Supine
- Feet Above Heart
- Transfer
- C-Me
Wheel Options:
- 14″ drive wheels
- 6″ casters
- No Power Seating Options: Starting at 328 lbs.
- Single Power Seating Options: Starting at 352 lbs.
- Multi Power Options: Starting at 366 lbs.
